6.6. Remote Management

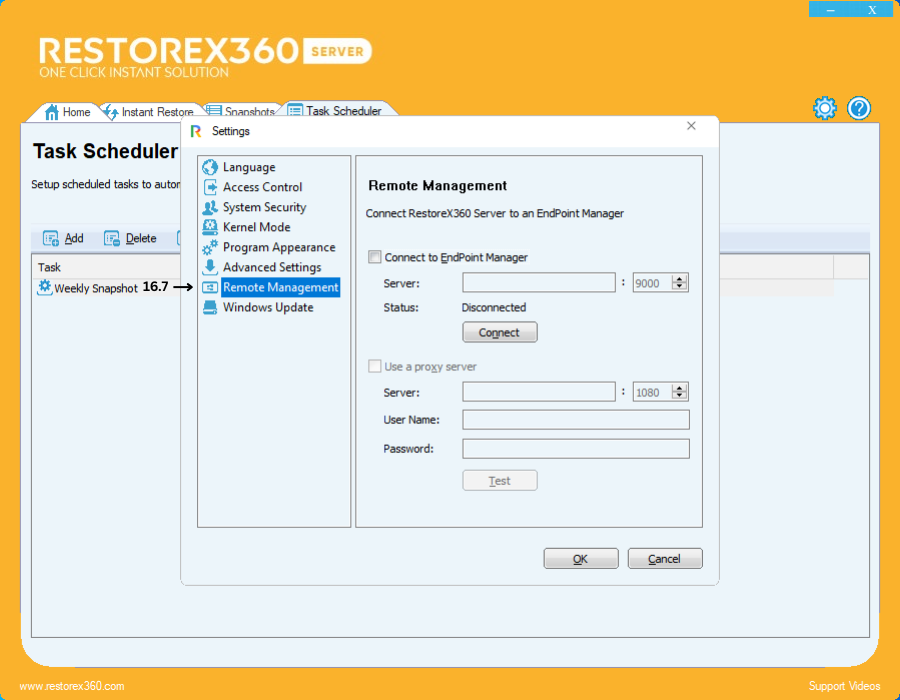

16.7 Remote Management – Connect RestoreX360 Server to an Endpoint Management Console

This feature allows you to connect RestoreX360 Server to a centralized Endpoint Management Console, enabling remote monitoring and management of your system.

To Connect to the Endpoint Manager:

1. Click on "Connect to Endpoint Manager."

2. In the Server field, enter the IP address of the system running the RestoreX360 Endpoint Management software.

Note:

The Endpoint Management software must be installed on another PC within the same network.
To find the IP address of that PC:
Open Command Prompt (CMD) on the target PC.
Type ipconfig and press Enter.
Locate and copy the IPv4 Address shown.
Paste this IP address into the Server box in Remote Management.

3. Click "Connect."

If the connection is successful, the Status field will display Connected.
If the connection fails, the Status will show Disconnected. Ensure both systems are on the same network and firewall settings allow communication.

Use a Proxy Server

This feature is currently under development and will be available in a future update.
